800G BERT with MCB & Temperature Control Integrated



  • Application
  • Characteristic
  • Specifications
  • Download
    • Commodity name: 800G BERT with MCB & Temperature Control Integrated
    • 型号: PSS BERT3T800G3
    • Describe: Support multi-station tri-temperature integrated testing of OSFP, QSFP-DD, QSFP112 series packaging products

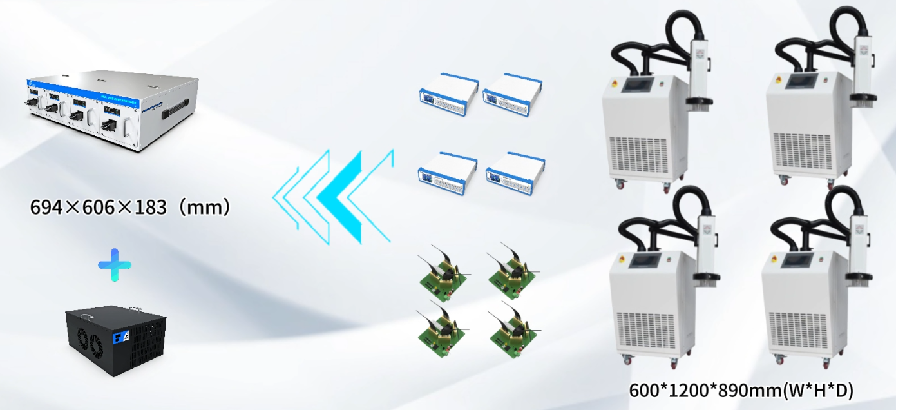

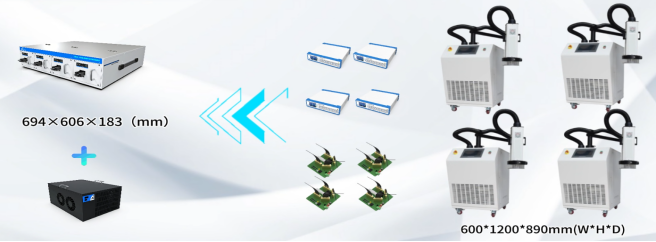

    • · Powerful all-in-one device, making the test environment lightweight

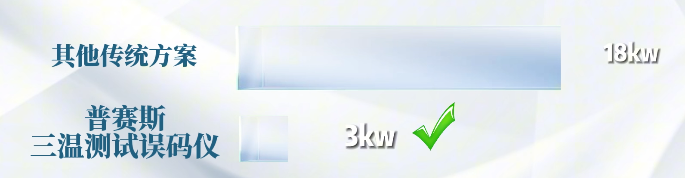

    • · Excellent overall power consumption performance

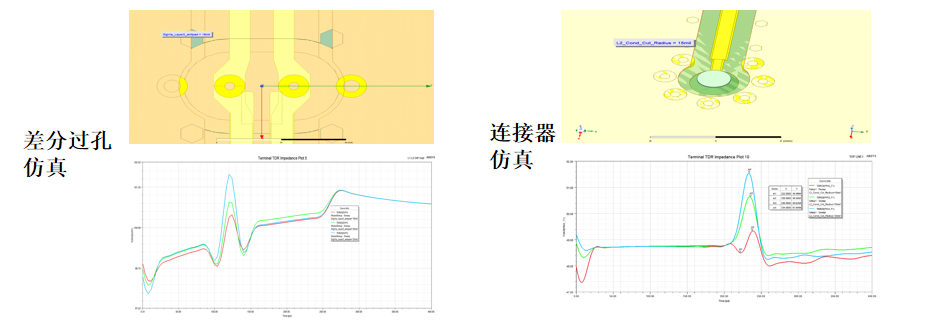

    • · Simulation of key nodes to ensure optimal impedance matching and impedance fluctuation of the link

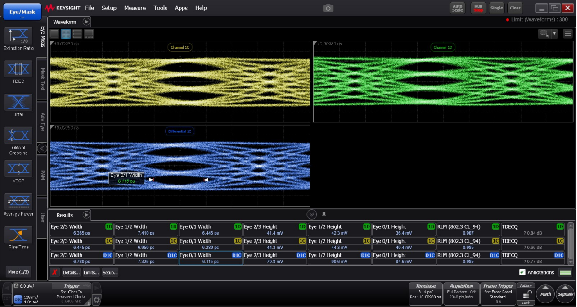

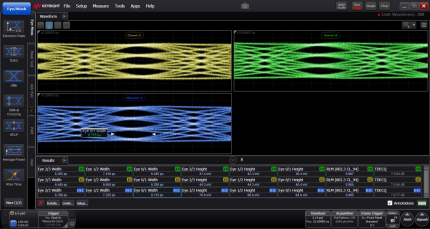

    • · Optimal design ensures signal quality at the error rate instrument end @53GBd differential eye diagram 20cm Cable

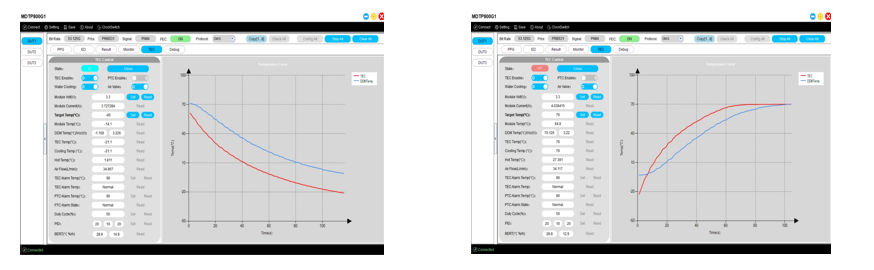

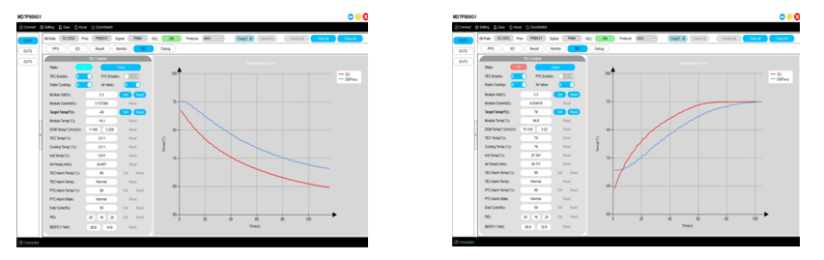

    • · Efficient temperature control, double-sided TEC + liquid cooling circulation design
    • · Each port's water channel is completely independent, with stable temperature control and no mutual interference
    • · Multi-directional sensors monitor the TEC status in real time to ensure optimal output efficiency

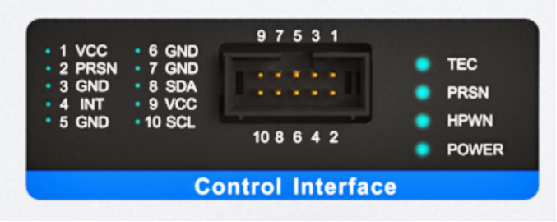

    • · Flexible optical module communication interaction, supporting real-time switching between internal and external module IIC interfaces

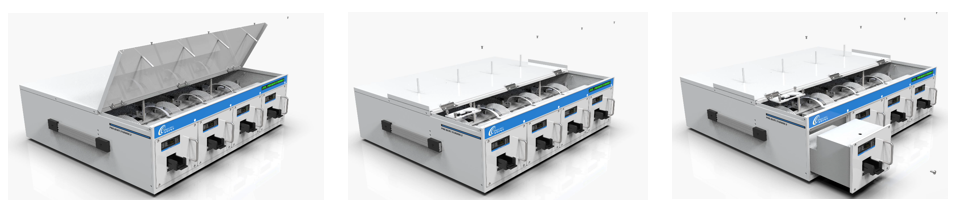

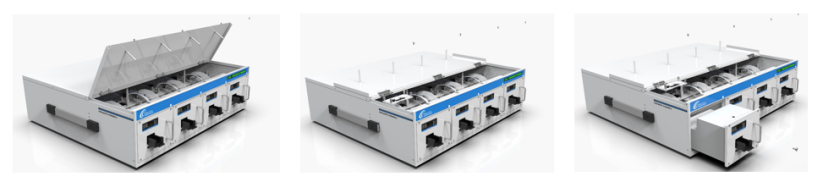

    • · High maintainability, modular design, simple steps to replace a single module, fully compatible with different module packaging, plug and play

    • · High product reliability, providing comprehensive protection for module overheating, module power failure, MCB board plug-in life, module condensation, and equipment leakage detection

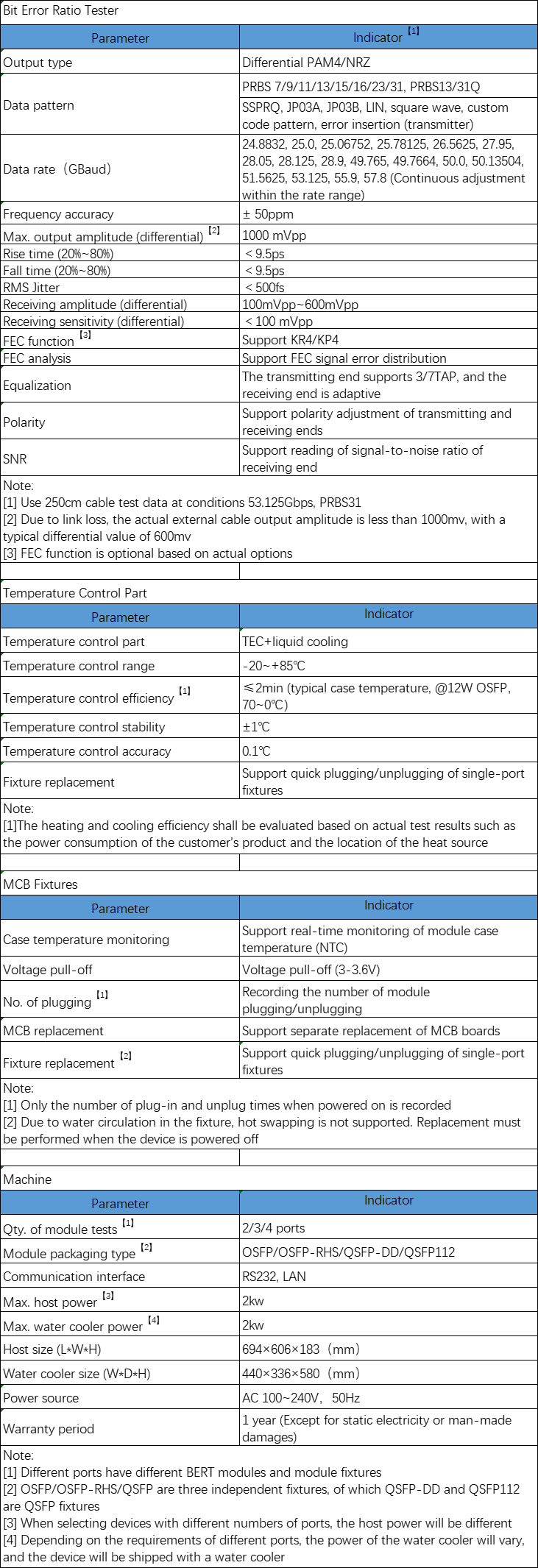

  • Bit Error Rate Tester

    Parameters

    Indicators [1]

    Output Type

    Differential PAM4/NRZ

    Data Code Type

    PRBS 7/9/11/13/15/16/23/31, PRBS13/31Q;

    SSPRQ, JP03A, JP03B, LIN, Square Wave, Custom Code Type, Bit Error Insertion (Transmission End)

    Data Rate (GBaud)

    24.8832, 25.0, 25.06752, 25.78125, 26.5625, 27.95, 28.05, 28.125, 28.9, 49.765, 49.7664, 50.0, 50.13504, 51.5625, 53.125, 55.9, 57.8 (Continuously adjustable within the rate range)

    Frequency Accuracy

    ± 50ppm

    Maximum Output Amplitude (Differential) [2]

    1000 mVpp

    Rise Time (20%~80%)

    <9.5ps

    Fall Time (20%~80%)

    <9.5ps

    RMS Jitter

    <500fs

    Receiving Amplitude (Differential)

    100mVpp~600mVpp

    Receiving Sensitivity (Differential)

    <100 mVpp

    FEC Function [3]

    Supports KR4/KP4

    FEC Analysis

    Supports FEC signal error distribution

    Equalization

    Transmission end supports 3/7TAP, receiving end adaptive

    Polarity

    Supports transmission and reception end polarity adjustment

    Signal-to-Noise Ratio

    Supports receiving end signal-to-noise ratio reading

    Note:

    1. Data tested using a 250cm cable under 53.125Gbps, PRBS31 conditions

    2. Due to link loss, the actual external cable output amplitude is less than 1000mv, typical value differential 600mv

    3. FEC function depends on actual optional accessories





    Temperature Control Part

    Parameters

    Indicators

    Temperature Control Method

    TEC+Liquid Cooling

    Temperature Control Range

    -20~+85℃

    Temperature Control Efficiency [1]

    ≤2min (Typical case temperature, @12W OSFP, 70~0℃)

    Temperature Control Stability

    ±1℃

    Temperature Control Accuracy

    0.1℃

    Fixture Replacement

    Supports single-port fixture quick plug and unplug

    Note:

    [1]The heating and cooling efficiency needs to be evaluated based on the actual test of customer product power consumption and heat source location.



    MCB Fixture

    Parameters

    Indicators

    Case Temperature Monitoring

    Supports real-time monitoring of module case temperature (NTC)

    Voltage Bias

    Voltage Bias (3-3.6V)

    Number of Plugs [1]

    Supports recording the number of module plugs

    MCB Replacement

    Supports separate replacement of MCB board

    Fixture Replacement [2]

    Supports single-port fixture quick plug and unplug

    Note:

    1. Only records the number of plugs when powered on

    2. Due to the water circulation of the fixture, hot plugging is not supported. Ensure that the device is powered off before replacement.



    Complete Machine

    Parameters

    Indicators

    Number of Modules Tested [1]

    2/3/4 ports

    Module Packaging Type [2]

    OSFP/OSFP-RHS/QSFP-DD/QSFP112

    Communication Interface

    RS232, LAN

    Maximum Host Power [3]

    2kw

    Maximum Water Cooler Power [4]

    2kw

    Host Dimensions (L*W*H)

    694×606×183(mm)

    Water Cooler Dimensions (W*D*H)

    440×336×580(mm)

    Power Supply

    AC 100~240V,50Hz

    Warranty Period

    1 year (excluding electrostatic or man-made damage)

    Note:

    [1]Different ports use different bit error rate tester modules and module fixtures.

    [2]OSFP/OSFP-RHS/QSFP are three independent fixtures, among which QSFP-DD and QSFP112 use QSFP fixtures.

    Selecting devices with different numbers of ports will result in inconsistent host power.

    Depending on port requirements, the water chiller power will vary; the device will be shipped with a water chiller.
