PSS general-purpose instruments include commonly used optical measurement instruments such as optical power meters, optical attenuators, optical switches, and light sources; as well as basic electrical channel switching electrical switch instruments
Instruments
图片名称

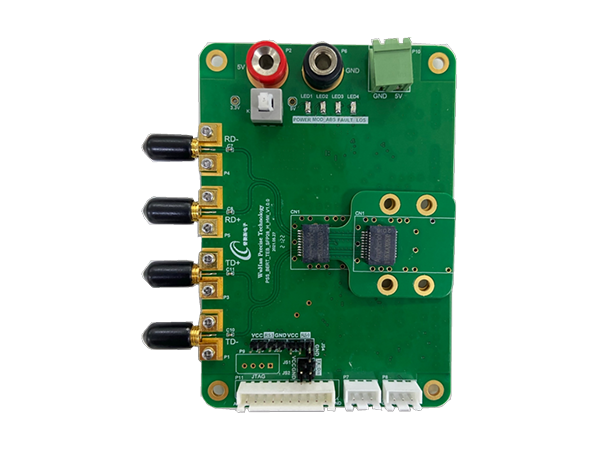

SFP28 Module Test Board

SFP28 Module Test Board

View Details

PSS BERT_TEB_SFP28

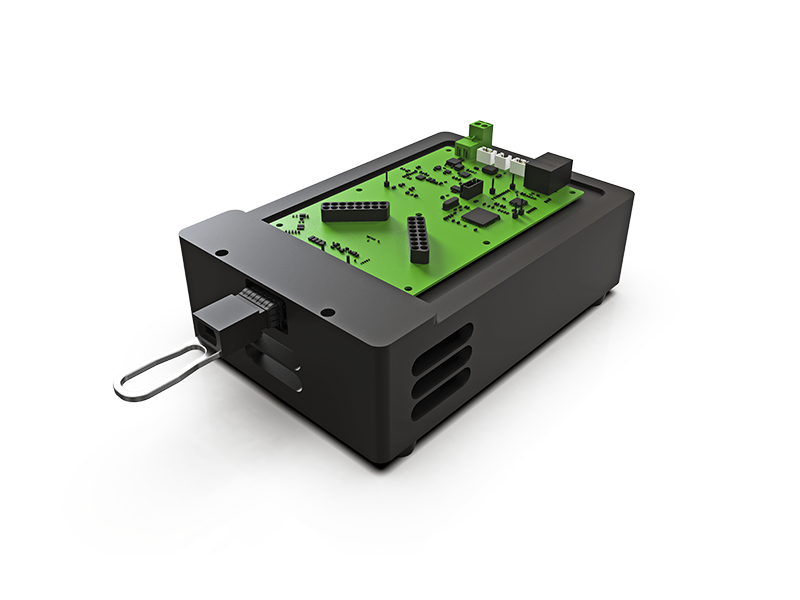

PSS module test board can test optical modules of different package types. The test board has high reliability, good repeatability and good signal quality. The module IIC pins are led out so that customers can connect and test by themselves. A test box can also be selected to protect against static electricity and fix it.

SFP28 package module test board

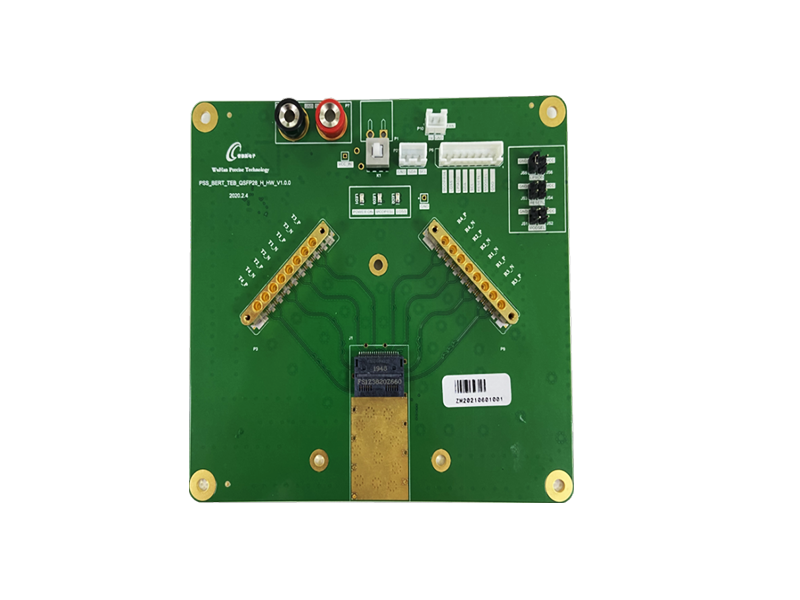

QSFP28 Module Test Board

QSFP28 Module Test Board

View Details

PSS BERT_TEB_QSFP28

PSS module test board can test optical modules of different package types. The test board has high reliability, good repeatability and good signal quality. The module IIC pins are led out so that customers can connect and test by themselves. A test box can also be selected to protect against static electricity and fix it.

QSFP28 package module test board

QSFP-DD Module Test Board

QSFP-DD Module Test Board

View Details

PSS BERT_TEB_QSFP-DD

PSS module test board can test optical modules of different package types. The test board has high reliability, good repeatability and good signal quality. The module IIC pins are led out so that customers can connect and test by themselves. A test box can also be selected to protect against static electricity and fix it.

QSFP-DD package module test board

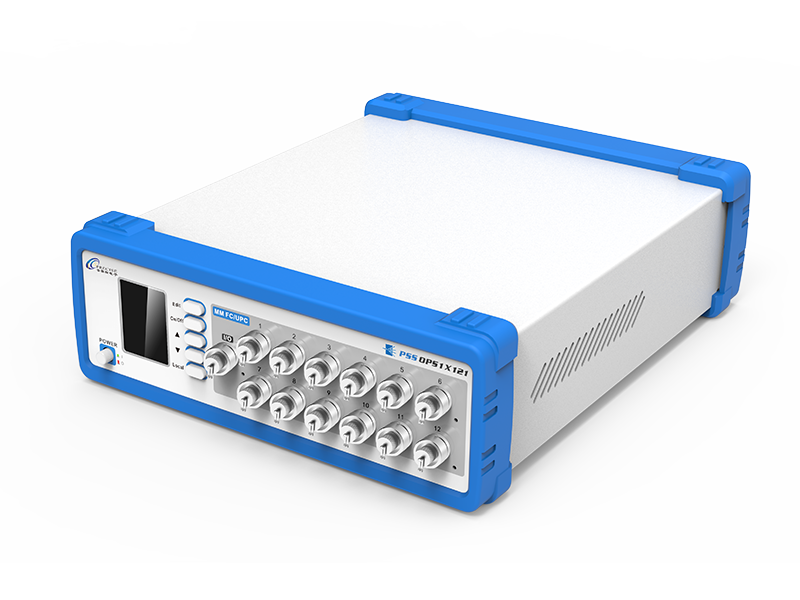

Optical Switch

Optical Switch

View Details

PSS OPSMXN01

PSS OPS optical switch is mainly used for switching of multi-channel optical paths. The device is controlled by advanced high-performance core components and has the characteristics of stable operation, fast switching speed, low insertion loss, low temperature-related loss and polarization-related loss, low return loss, high isolation and long switch life. It is widely used in optical transmission systems, test systems and monitoring fields. This tester is provided with buttons and LCD for users to operate locally.

MXN series optical switches, supporting various optical path customization

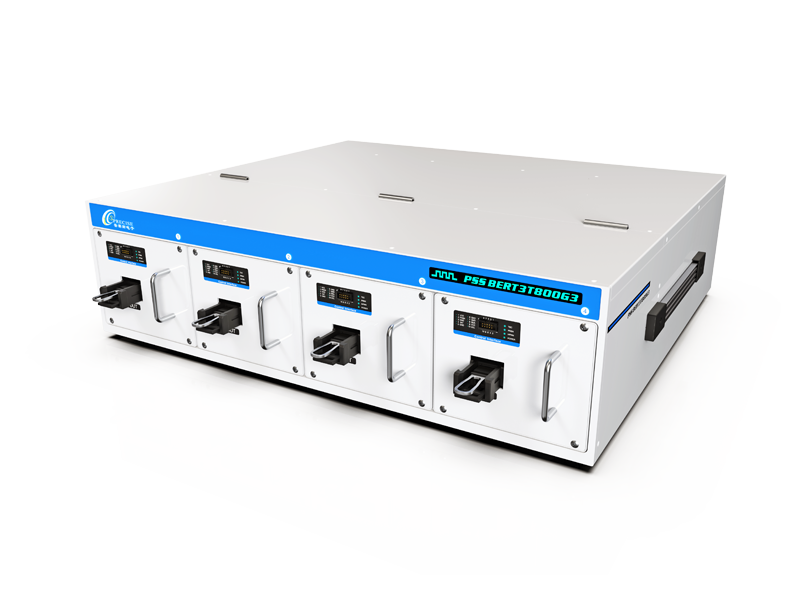

800G BERT with MCB & Temperature Control Integrated

800G BERT with MCB & Temperature Control Integrated

View Details

PSS BERT3T800G3

PSS BERT3T800G3 integrates an 800G BERT, MCB board, tri-temperature TEC plus liquid cooling rapid temperature control system. It is provided with a self-developed water cooler to realize totally independent four-channel water circulation to keep independent temperature control of each port. It can support multi-port 400G/800G OSFP, QSFP-DD, QSFP112 module insertion test. With a modular design, the device can be equipped with different port numbers and packages according to the actual needs of users to meet the personalized testing needs of customers. Compared with traditional solutions, it reduces the test bench space, reduces testing costs, and increases R&D and production testing efficiency.

Support multi-station tri-temperature integrated testing of OSFP, QSFP-DD, QSFP112 series packaging products

Pulse Voltage Source

Pulse Voltage Source

View Details

PSS PLT1403

PSS PLT1403 narrow pulse source is applicable for testing high-power lasers such as LiDAR TO and VCSEL arrays. It supports ns narrow pulse, DC PIV characteristic curve scanning test and characteristic parameter calculation. The instrument integrates the functions of pulse voltage source, ammeter, voltmeter and optical power meter and has the characteristics of small volume, fast test speed and simple use.

Voltage 40V, current 30A, minimum pulse width 100ns, optical power 5mw, duty cycle ≤0.5%
