Pulse Voltage Source

Pulse Voltage Source

View Details

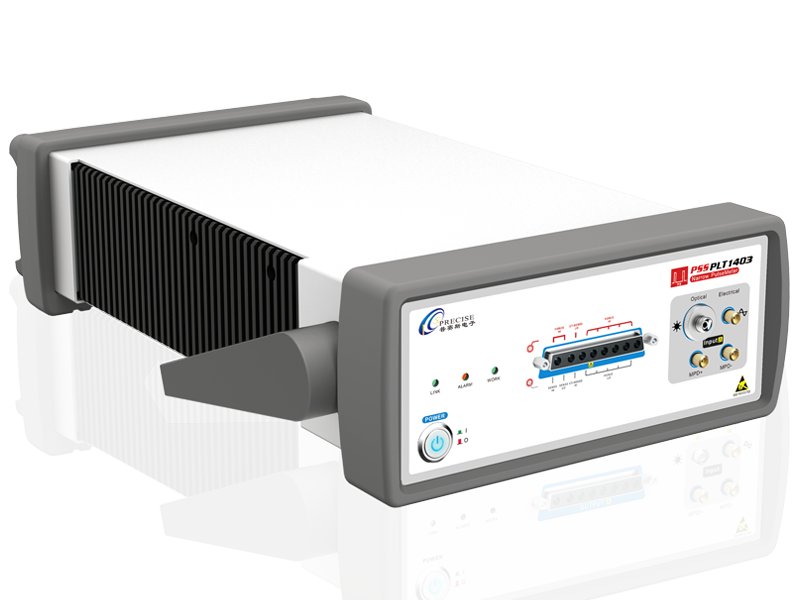

PSS PLT1403

PSS PLT1403 narrow pulse source is applicable for testing high-power lasers such as LiDAR TO and VCSEL arrays. It supports ns narrow pulse, DC PIV characteristic curve scanning test and characteristic parameter calculation. The instrument integrates the functions of pulse voltage source, ammeter, voltmeter and optical power meter and has the characteristics of small volume, fast test speed and simple use.

Voltage 40V, current 30A, minimum pulse width 100ns, optical power 5mw, duty cycle ≤0.5%

Pulse Current Source

Pulse Current Source

View Details

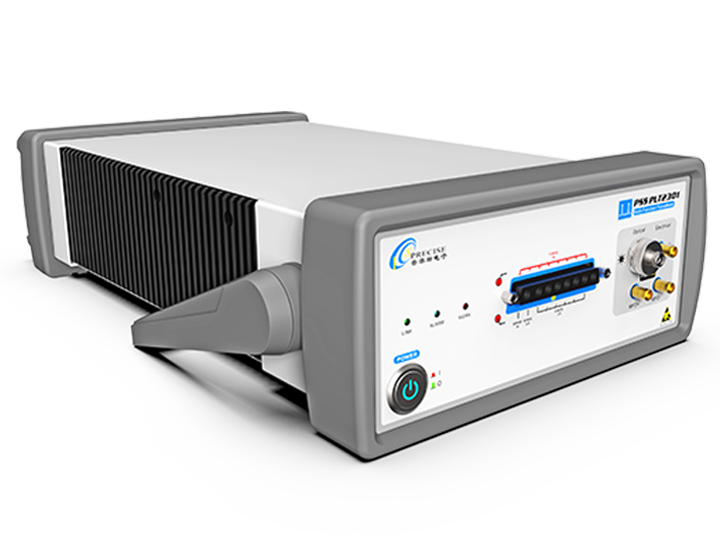

PSS PLT2301

PSS PLT2301 pulse source is applicable for testing high-power lasers such as visible laser, LiDAR TO and VCSEL array. It supports pulse and DC PIV characteristic curve scanning test and characteristic parameter calculation, and spectral characteristic test (external spectroscope required). The instrument integrates the functions of pulse voltage source, ammeter, voltmeter and optical power meter, and has the characteristics of small volume, fast test speed and simple use.

Voltage 40V, DC 5A, pulse 30A, minimum pulse width 10μs, duty cycle 0~60%

Pulse Current Source

Pulse Current Source

View Details

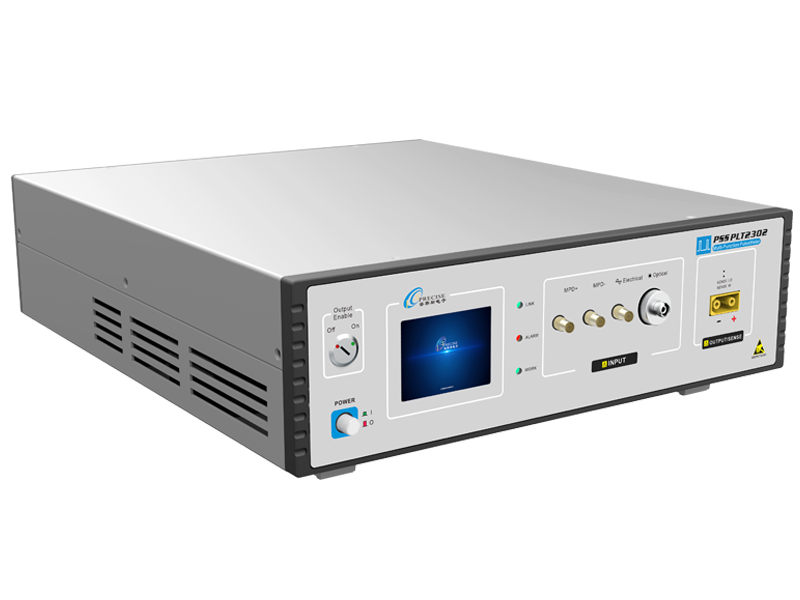

PSS PLT2302

PSS PLT2302 source meter is applicable for testing high-power lasers such as visible laser, high-power BAR and VCSEL array. It supports pulse and DC PIV characteristic curve sweep test and characteristic parameter calculation, and supports spectral characteristic test (external spectroscope required). The instrument integrates the functions of pulse current source, ammeter, voltmeter and optical power meter, and has the characteristics of small volume, fast test speed and simple use.

Voltage 26V, DC 10A, pulse 30A, minimum pulse width 5μs, duty cycle 0~100%

High-power Power Supply

High-power Power Supply

View Details

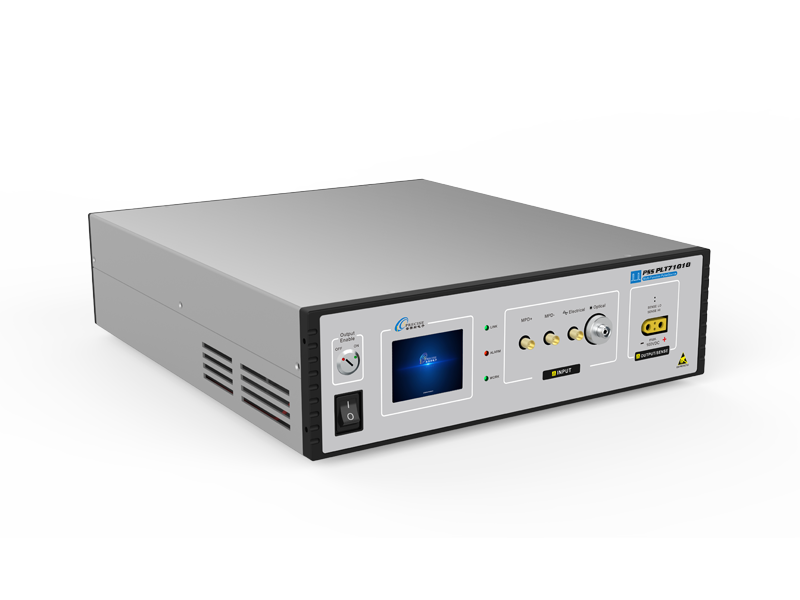

PSS LIV71010

PSS LIV71010 source measure unit is applicable for the testing of high-power lasers such as visible laser, LiDAR TO and VCSEL array. It supports the sweep test of pulse and DC PIV characteristic curves and the calculation of characteristic parameters, and the test of spectral characteristics (external spectroscope required). It integrates the functions of pulse current source, ammeter, voltmeter and optical power meter, and has the characteristics of small volume, fast test speed and simple use.

Voltage 100V, DC 10A, pulse 10A, minimum pulse width ≥100μs, duty cycle 0~100%

Benchtop Source Measure Unit

Benchtop Source Measure Unit

View Details

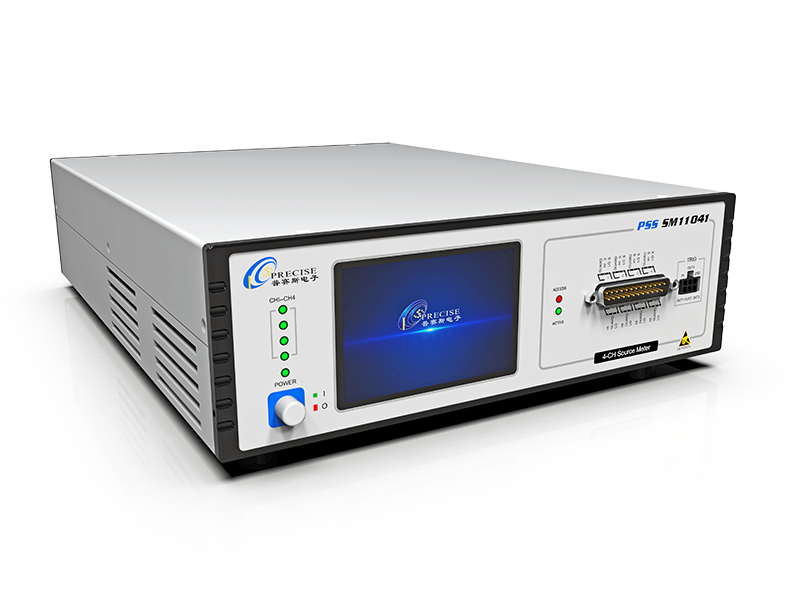

PSS SM11041

PSS SM11041 is a 4-channel independent high-performance precision source meter that can output and measure voltage and current simultaneously, supporting up to ±10V, ±100mA DC/pulse output, and minimum pulse width of 100μs. It supports Gigabit Ethernet and RS422 serial communication, source meter standard SCPI instruction set, and synchronous triggering of multiple source meters, which improves system test efficiency and reduces costs.

4-channel, voltage ±10V, current ±100mA, pulse width≥100μs, resolution 10pA/100μV, power 1W/CH duty cycle ≤0.5%

Benchtop Source Measure Unit

Benchtop Source Measure Unit

View Details

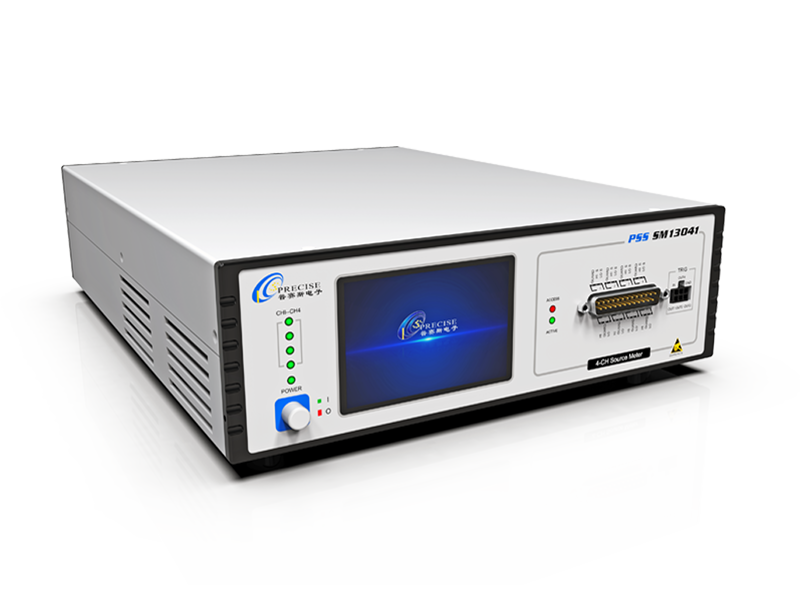

PSS SM13041

PSS SM13041 is a 4-channel independent high-performance precision source meter that can output and measure voltage and current simultaneously, supporting up to ±30V, ±500mA DC/pulse output, and minimum pulse width of 100μs. It supports Gigabit Ethernet and RS422 serial communication, source meter standard SCPI instruction set, and synchronous triggering of multiple source meters, which improves system test efficiency and reduces costs.

4-channel, voltage ±30V, current ±500mA, pulse width ≥100μs, resolution 10A/100μV, power 3W/CH
