Product Features
• Supports us-level pulse and DC output and testing
• Supports pulse and DC PIV high-speed scan testing
• Minimum pulse width 10us, maximum duty cycle up to 60%
• Maximum output voltage 40V, drive current can reach 30A
• Supports arbitrary current waveform editing and output
• Supports pulse edge slope control, adaptable to different devices without overshoot
• Supports two-wire and four-wire voltage detection, maximizing measurement accuracy
• Supports multiple devices in parallel, providing greater output current
• Supports high-speed acquisition and plotting of arbitrary single-pulse waveforms under continuous pulses, real-time monitoring of pulse waveforms
• Supports 2-channel synchronous pulse trigger output, polarity and synchronous pulse width adjustable
• Supports output pre-check protection function to ensure safe operation of the device
• Supports output short circuit protection and device over-temperature protection
• Provides an external integrating sphere (optional) for high-power light detection
• PD response wavelength range 850~1700nm
• Supports local and remote databases, supports industrial production MES systems -
Product Specifications
Project
Specification Category
Specification Name
Specification Index
Overall Specifications
Electrical Specifications
Supply Voltage (V)
AC:220
Power Consumption (W)
150
External Interfaces
Power Input
220VAC
Drive Output
8W8
TriggerOut
2*BNC
TriggerIn
1*BNC
100Mbps Network Port
1*RJ45
RS232 Serial Port
1*DB9
Front Light Power Input
φ2.0pin tube, 850~1700nm
Electrical Power Input
1*SMA
MPD+ Output
1*SMA
MPD- Input
1*SMA
Dimensions
Product Dimensions (WxLxH)
380*200*90mm
Overall Weight
6.9Kg
Operating and Storage
Operating Temperature
23±5℃
Storage Temperature
0~40℃
Warranty
Warranty Period
1 year
Electrical Performance Specifications
DC Performance
Output Current
0~0.1A, accuracy 0.1%RDG±0.1mA
0~0.5A, accuracy 0.1%RDG±0.5mA
0~5A, accuracy 0.1%RDG±5mA
Output Voltage
10V
Current Measurement
0~0.1A, accuracy 0.1%RDG±0.1mA
0~0.5A, accuracy 0.1%RDG±0.5mA
0~5A, accuracy 0.1%RDG±5mA
Voltage Measurement
0~10V, accuracy 0.1%RDG±10mV
Pulse Performance
Output Current
0~5A, accuracy 0.1%RDG±5mA
0~30A, accuracy 0.1%RDG±30mA
Output Voltage
Gear 1: 10V
Gear 2: 40V
Pulse Width
10μs~5ms, Note: Half-height width
Pulse Width Resolution
10ns
Pulse Rise and Fall Time
≤20%*Pulse Width
Pulse Width Accuracy
≥20ns
Pulse Duty Cycle
Output voltage 10V gear, D≤5/I×100%;
Output voltage 40V gear, D≤0.83/I×100%
Note: D is the duty cycle, the maximum does not exceed 60%; I is the load current.
Current Detection Range and Accuracy
0~5A, accuracy 0.1%RDG±5mA
0~30A, accuracy 0.1%RDG±30mA
Voltage Detection Range and Accuracy
0~10V, 0.1%RDG±10mV
0~60V, 0.1%RDG±60mV
Photoelectric Performance Specifications
Optical Port Power
Optical Port Power Detection Range and Accuracy
0~100uW, accuracy 0.1%RDG±0.1uW
0~1mW, accuracy 0.1%RDG±1uW
0~5mW, accuracy 0.1%RDG±5uW
Electrical Port Current
Electrical Port Current Detection Range and Accuracy
0~100uA, accuracy 0.1%RDG±0.1uA
0~1mA, accuracy 0.1%RDG±1uA
0~10mA, accuracy 0.1%RDG±10uA
MPD
MPD+ Reverse Voltage
0~5V, accuracy 1%RDG±50mV
Current Detection Range and Accuracy
0~100uA, accuracy 0.1%RDG±0.1uA
0~1mA, accuracy 0.1%RDG±1uA
0~10mA, accuracy 0.1%RDG±10uA

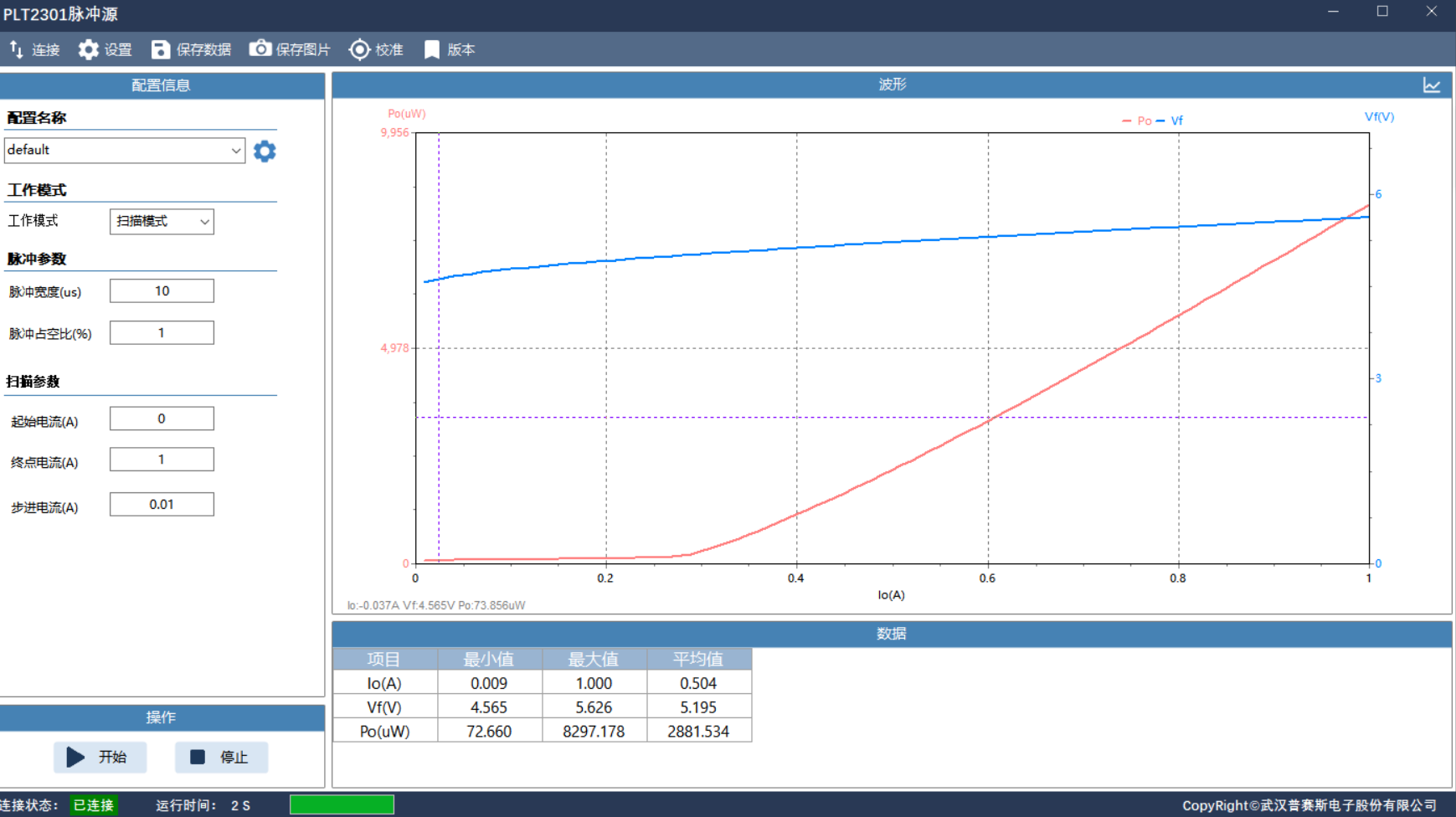

Typical Data
