Pulse Voltage Source
Classification:
PSS PLT1403 narrow pulse source is applicable for testing high-power lasers such as LiDAR TO and VCSEL arrays. It supports ns narrow pulse, DC PIV characteristic curve scanning test and characteristic parameter calculation. The instrument integrates the functions of pulse voltage source, ammeter, voltmeter and optical power meter and has the characteristics of small volume, fast test speed and simple use.
- Application
- Characteristic
- Specifications
- Download
-
Application
1. High-power LiDAR TO test
2. VCSEL laser array test
3. High-power BAR pulse test
4. High-power COS/COC pulse testFeatures
1. Support ns-level pulse output and test

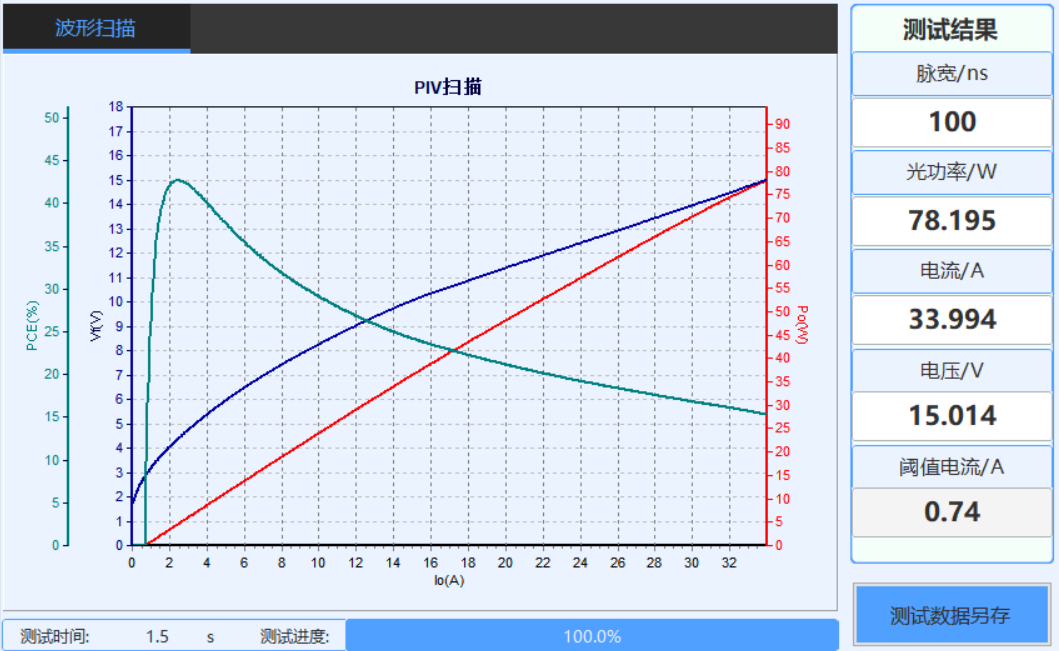

2. Support pulse PIV high-speed scanning test
3. Minimum pulse width 100ns, duty cycle up to 0.5%
4. Drive current up to 30A
5. Support near-end and far-end current detection
6. Support ns pulse current waveform output monitoring
7. Support voltage four-wire detection to maximize measurement accuracy
8. Support output pre-check protection function to ensure safe operation of the device
9. Provide external integrating sphere (optional) for high-power optical detection
10. PD response wavelength range 850~1700nm
11. Support local and remote databases, support industrial production MES systemSpecification
Typical Data

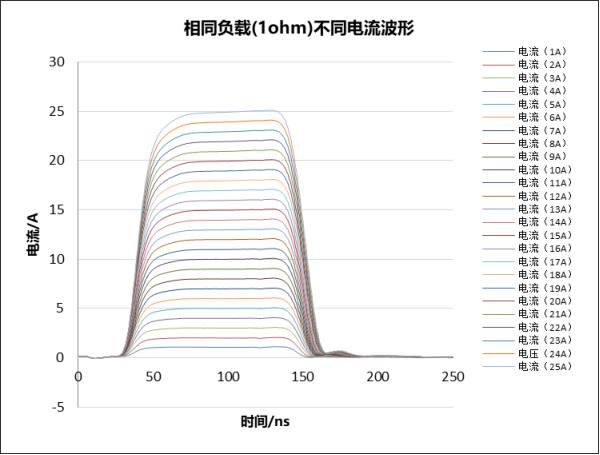

1. Pulse waveforms under different current conditions
2. Typical 905nm laser TO test data

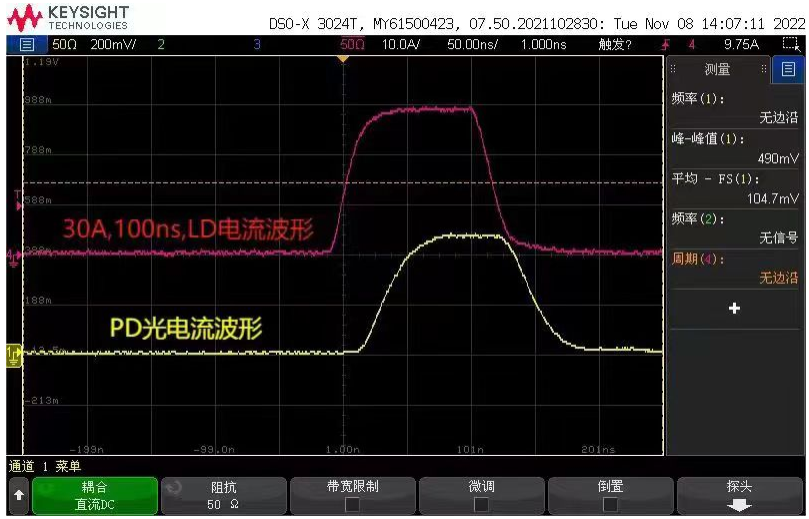

3. 100ns drive current and PD light waveform
-
Product Features
- Support ns-level pulse output and testing
- Pulse support PIV high-speed scanning test
- Minimum pulse width 100ns, duty cycle up to 0.5%
- Drive current can reach 30A
- Supports near-end and far-end current detection
- Support ns pulse current waveform output monitoring
- Supports four-wire voltage detection, maximizing measurement accuracy
- Support 2-channel synchronous pulse trigger output, polarity and synchronous pulse width adjustable
- Supports output pre-check protection function to ensure safe device operation
- Provides an external integrating sphere (optional) for high-power light detection
- PD response wavelength range 850~1700nm
- Supports local and remote databases, supports industrial production MES system
-

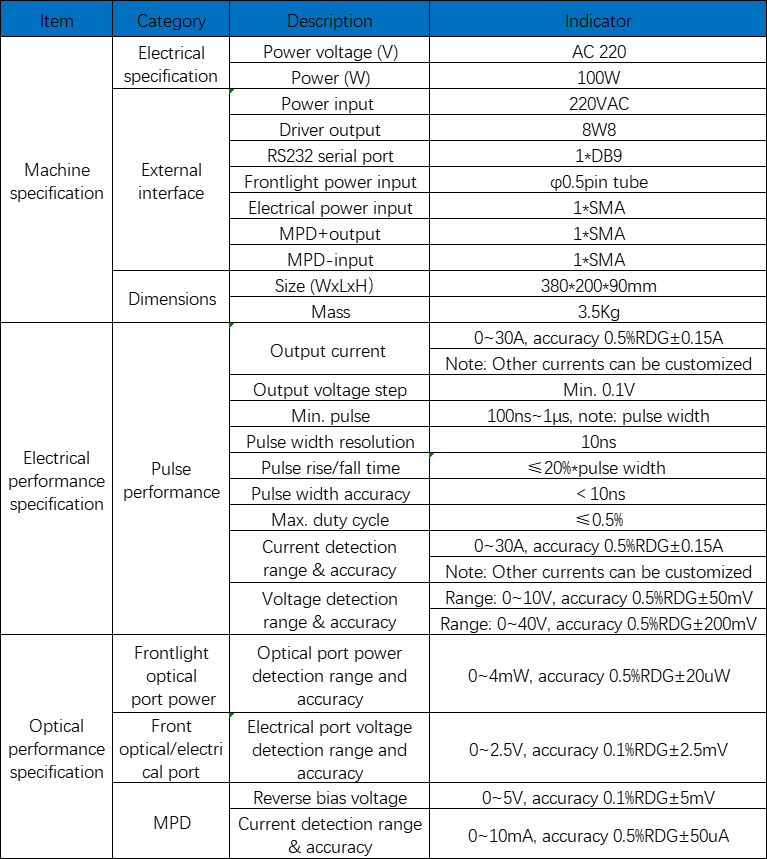

Product Metrics
Project
Specification Category
Specification Name
Specification Index
Overall Specifications
Electrical Specifications
Supply Voltage (V)
AC:220
Power Consumption (W)
100W
External Interfaces
Power Input
220VAC
Drive Output
8W8
TriggerOut
2*BNC
TriggerIn
1*BNC
100M Ethernet Port
1*RJ45
RS232 Serial Port
1*DB9
Front Light Power Input
φ0.5pin tube
Electric Power Input
1*SMA
MPD+ Output
1*SMA
MPD- Input
1*SMA
Appearance Dimensions
Product Dimensions (WxLxH)
380*200*90mm
Overall Weight
3.5Kg
Electrical Performance Specifications
Pulse Performance
Output Current
0~30A, Accuracy 0.5%RDG±0.15A
Note: Other currents can be customized
Output Voltage Step
Minimum 0.1V
Minimum Pulse Width
100ns~1μs, Note: Half-width
Pulse Width Resolution
10ns
Pulse Rise and Fall Time
≤20%* Pulse Width
Pulse Width Accuracy
<10ns
Maximum Duty Cycle
≤0.5%
Current Detection Range and Accuracy
0~30A, Accuracy 0.5%RDG±0.15A
Note: Other currents can be customized
Voltage Detection Range and Accuracy
Range: 0~10V, Accuracy 0.5%RDG±50mV
Range: 0~40V, Accuracy 0.5%RDG±200mV
Photoelectric Performance Specifications
Front Light Port Power
Optical Port Power Detection Range and Accuracy
0~4mW, Accuracy 0.5%RDG±20uW
Front Photoelectric Port Power
Electric Port Power Detection Range and Accuracy
0~10mA, Accuracy 0.5%RDG±50uA
MPD
Reverse Voltage
0~5V, Accuracy 0.1%RDG±5mV
Current Detection Range and Accuracy
0~10mA, Accuracy 0.5%RDG±50uA
Typical Data
Pulse Waveforms under Different Current Conditions
Typical 905nm Laser TO Test Data
100ns Drive Current and PD Light Waveform
