SFP28 Module Test Board


PSS module test board can test optical modules of different package types. The test board has high reliability, good repeatability and good signal quality. The module IIC pins are led out so that customers can connect and test by themselves. A test box can also be selected to protect against static electricity and fix it.


  • Application
  • Characteristic
  • Specifications
  • Download
    • Commodity name: SFP28 Module Test Board
    • 型号: PSS BERT_TEB_SFP28
    • Describe: SFP28 package module test board

    PSS module test board can test optical modules of different package types. The test board has high reliability, good repeatability and good signal quality. The module IIC pins are led out so that customers can connect and test by themselves. A test box can also be selected to protect against static electricity and fix it.

    Features
    1. Support SFP, SFP+ and SFP28 package modules
    2. Support independent DDMI control, IIC pin lead-out and state control pin lead-out
    3. Support RS232 serial communication, realize module IIC read & write operations
    4. Comply with standard SFF8472 protocol, function pin lead-out
    5. Independent switch control
    6. Compatible with two kinds of 5V power interface, anti-reverse connection, anti-surge
    7. TxFlaut & Rxlos status indicator lights are displayed, which is more intuitive
    8. Support using at -40℃~+85℃
    9. PCB size 106.5*74mm
    10. Pluggable independent small card, realizing automatic module testing, easy to replace later



    Specification





  • The Parses module test board can test optical modules of different package types. The test board is highly reliable, repeatable, and offers excellent signal quality. The module IIC pins are brought out, allowing customers to connect for testing. A test box is also optionally available to provide electrostatic protection and secure the module.

  • PSS BERT_TEB_SFP Series



    Overall Test Board Diagram



    Features

    Supports SFP, SFP+ transceiver modules

    Supports independent DDMI control, IIC pin output, and status control pin output

    Complies with the standard SFF8472 protocol, functional pin output

    SMA connector, high reliability

    Independent switch control

    Compatible with two types of 5V power interfaces, reverse connection and surge protection

    TxFlaut, Rxlos and other status indicator lights display, more intuitive

    Supports operation in environments from -40 to +85 degrees Celsius

    PCB dimensions: 106.5*74mm

    Pluggable independent small card, enabling automated module testing and facilitating future replacement

    Version Information

    Model

    Description

    PSS BERT_TEB_SFP-#1

    Initial Version

    PSS BERT_TEB_SFP-#2



    1. Supports multi-pin level jump, burst and flip

    2. Compatible with multiple types of power interfaces

    3. Optional pluggable small card, excellent RF performance

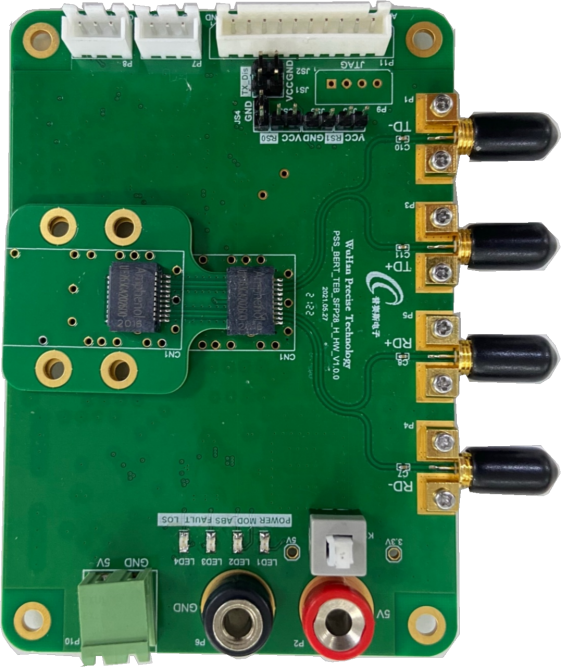

    PSS BERT_TEB_SFP28 Series



    Overall Test Board Diagram



    Features

    Supports SFP, SFP+, SFP28 transceiver modules

    Supports independent DDMI control, IIC pin output, and status control pin output

    Supports RS232 serial communication, enabling module IIC read and write operations

    Complies with the standard SFF8472 protocol, functional pin output

    Independent switch control

    Compatible with two types of 5V power interfaces, reverse connection and surge protection

    TxFlaut, Rxlos and other status indicator lights display, more intuitive

    Supports operation in environments from -40 to +85 degrees Celsius

    PCB dimensions: 106.5*74mm

    Pluggable independent small card, enabling automated module testing and facilitating future replacement

    Version Information

    Model

    Description

    PSS BERT_TEB_SFP28-#1

    Initial Version



    PSS BERT_TEB_SFP28-#2



    1. Supports multi-pin level jump, burst and flip

    2. Compatible with multiple types of power interfaces

    3. Optional pluggable small card, excellent RF performance

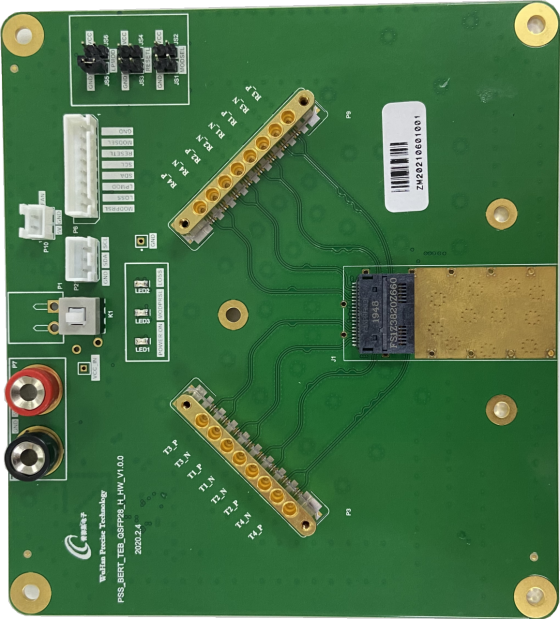

    PSS BERT_TEB_QSFP28 Series



    Overall Test Board Diagram

    Features

    Supports QSFP+, QSFP28 transceiver modules

    Supports independent DDMI control, IIC pin output

    Complies with the standard SFF8636 protocol, functional pin output

    K-type 1*8 connector and cable, high reliability

    Independent switch control

    Compatible with two types of 5V power interfaces, reverse connection and surge protection

    TxFlaut, Rxlos and other status indicator lights display, more intuitive

    Supports operation in environments from -40 to +85 degrees Celsius

    PCB dimensions: 141.8*128.6mm

    Version Information

    Model

    Description

    PSS BERT_TEB_QSFP28-#1

    Initial Version

    PSS BERT_TEB_QSFP28-#2

    1. Uses dual 5V power interface, high-reliability connector

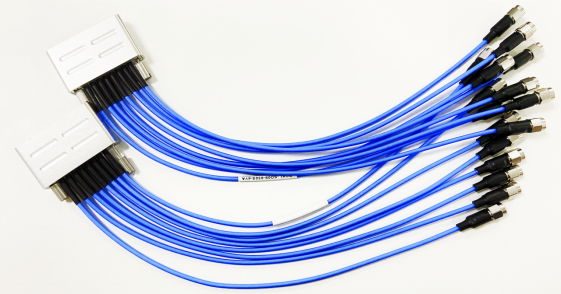

    2. Cable (1*8 SMPM to K (male) cable, DC-40Ghz, standard length 30cm, other cable lengths can be customized)

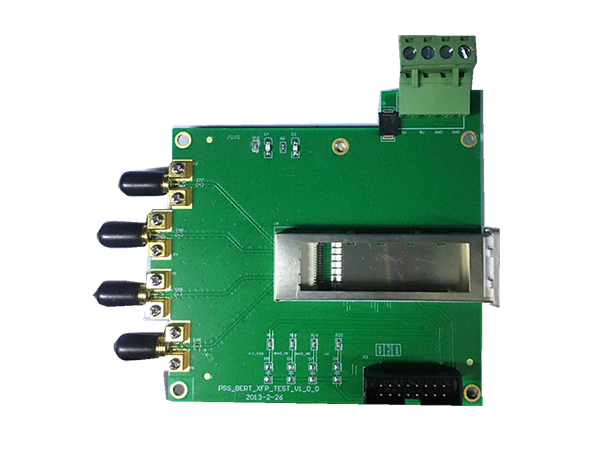

    PSS BERT_TEB_XFP Series



    Overall Test Board Diagram

    Features

    Supports XFP transceiver modules

    Supports independent DDMI control, IIC pin output

    Complies with the standard SFF8472 protocol, functional pin output

    SMA connector, high reliability

    5V power supply, reverse connection and surge protection

    TxFlaut, Rxlos and other status indicator lights display, more intuitive

    Supports operation in environments from -40 to +85 degrees Celsius

    PCB dimensions: 99*88mm

    Version Information

    Model

    Description

    PSS BERT_TEB_XFP-#1



    Initial Version

    Note: The test board can be equipped with a cage according to requirements
