Products

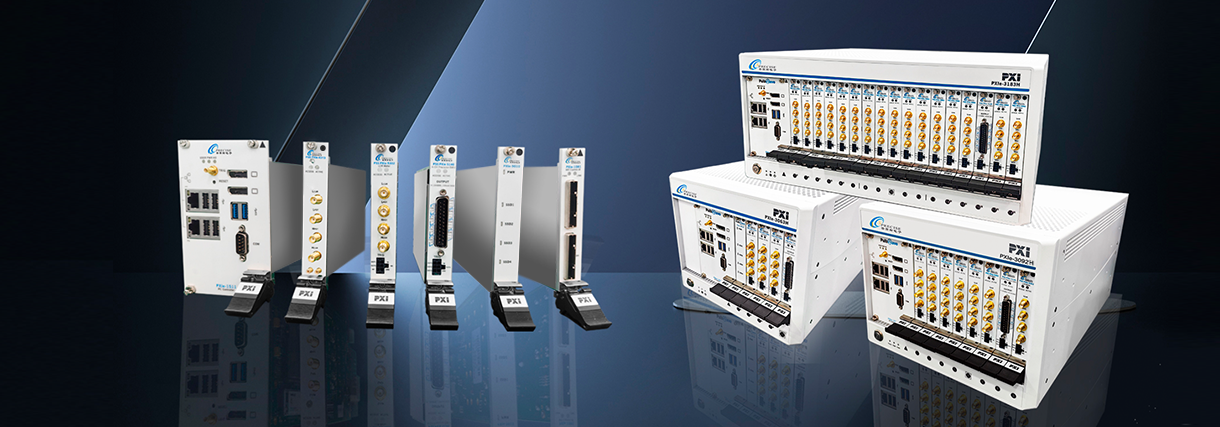

PXI System

PXI System
图片名称
RAID Card

RAID Card

View Details

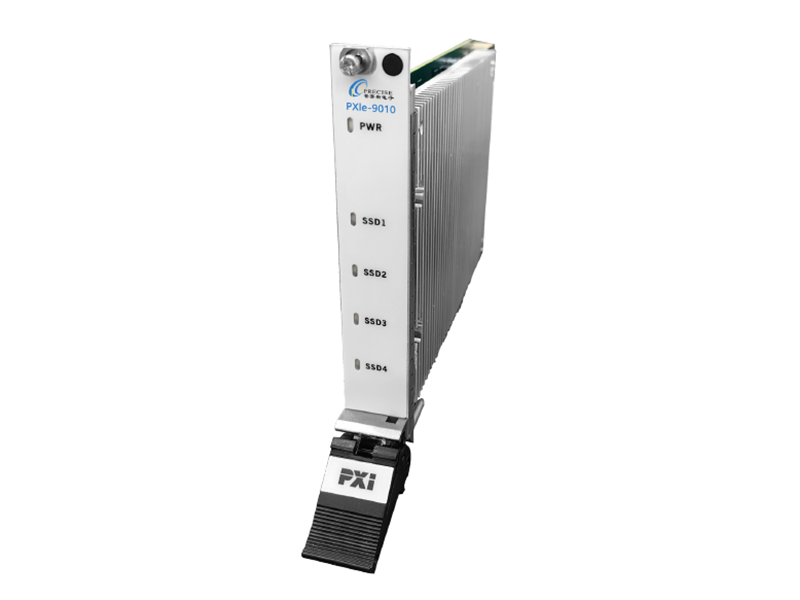

PXIe-9010

PXIe-9010 disk array card provides disk expansion for the PXIe modular chassis with embedded controller. It is a high-speed, large-capacity storage module with a transfer rate of up to 3.5GB/s. PXIe-9010 provides a maximum storage capacity of 16TB. It complies with the PXI-5 PXI Express Hardware Specification and the PXI-6 PXI Express Software Specification, and is also compatible with chassis and system cards produced by mainstream PXIe suppliers at home and abroad, meeting the needs of enterprise R&D, testing and production.

PCIe Gen3 technology, supporting 4 m.2 hard disk interfaces, NVME protocol, 8TB capacity

System Card

System Card

View Details

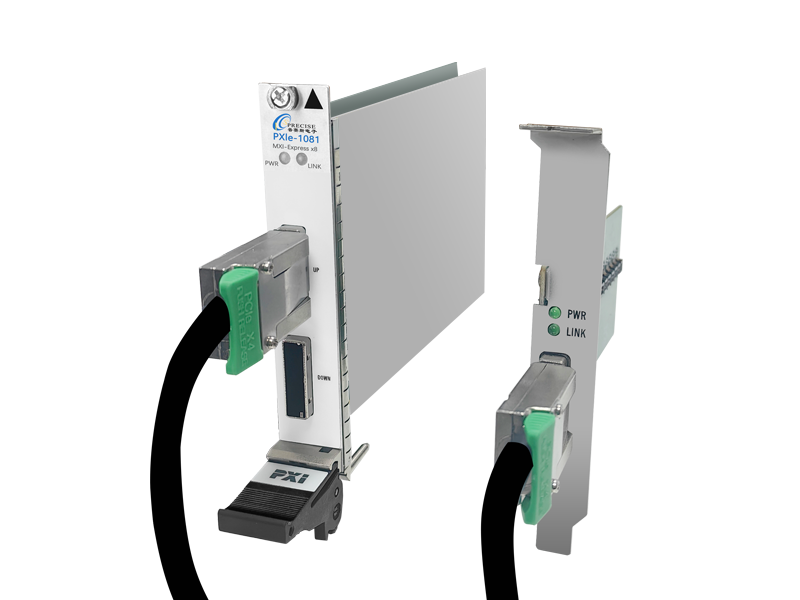

PXIe-1081

PCIe-PXIe-1081 remote card kit is a high-bandwidth, expandable system control module designed for R&D and test engineers. It includes the PXIe-1081 remote card, PCIe-1081, and PCIe x8 external cables to connect the computer system to the PXIe chassis to form a complete PXIe test system, which can be used in a variety of application scenarios to demonstrate its high reliability, versatility and practicality. The remote card kit complies with the PXI-5 PXI Express Hardware Specification and the PXI-6 PXI Express Software Specification, and is also compatible with chassis and modules produced by mainstream PXIe suppliers at home and abroad, meeting the needs of enterprise R&D, testing, and production.

8GB/s system bandwidth, 2Link x8/4Link x4 adaptive, supporting multi-level cascading

System Card

System Card

View Details

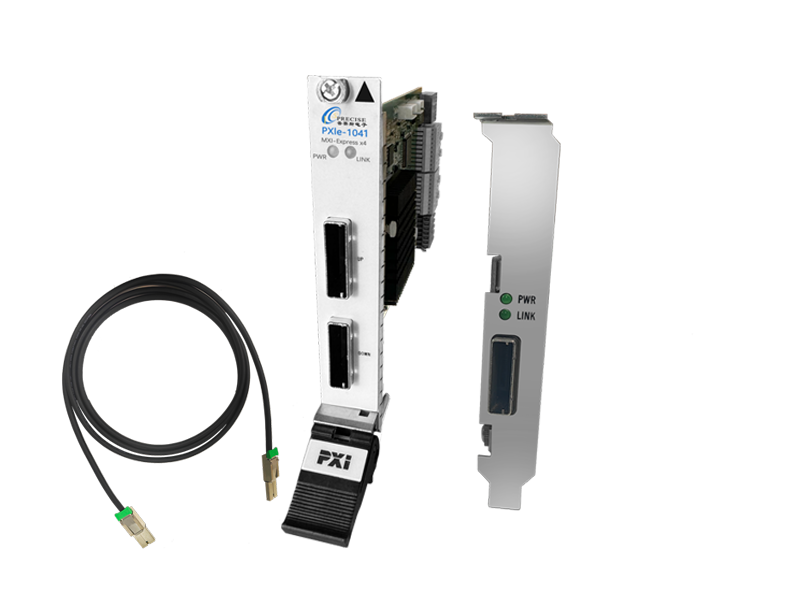

PXIe-1041

PCIe-PXIe-1041 remote card kit is a high-bandwidth, expandable system control module designed for R&D and test engineers. It includes the PXIe-1041 remote card, PCIe-1041, and PCIe x4 external cables to connect the computer system to the PXIe chassis to form a complete PXIe test system, which can be used in a variety of application scenarios to demonstrate its high reliability, versatility and practicality. The remote card kit complies with the PXI-5 PXI Express Hardware Specification and the PXI-6 PXI Express Software Specification, and is also compatible with chassis and modules produced by mainstream PXIe suppliers at home and abroad, meeting the needs of enterprise R&D, testing, and production.

2GB/s system bandwidth, supporting 4Link x4Link, multi-level cascading

PXIe LCR Meter

PXIe LCR Meter

View Details

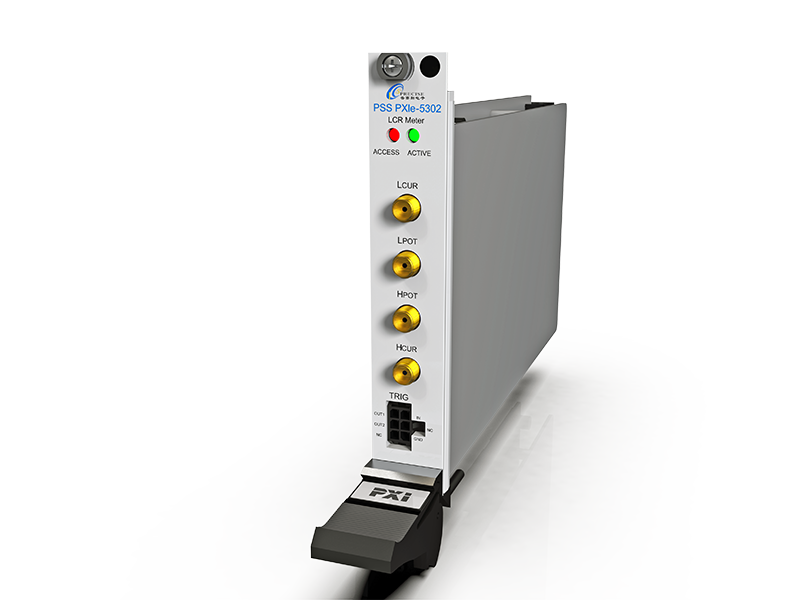

PSS PXIe-5302

PSS PXIe-5302 is a high-performance LCR meter based on PXIe interface, mainly used for measuring the inductance (L), capacitance (C) and DC resistance (R) of passive, optoelectronic, semiconductor and other devices or materials. This product supports the standard SCPI instruction set and standard PXIe chassis, which can be quickly integrated into the PXIe test system to improve system test efficiency.

Test frequency 100KHz~2MHz, bias voltage ±10V, AC output 0.2Vrms~2Vrms

PXIe LCR Meter

PXIe LCR Meter

View Details

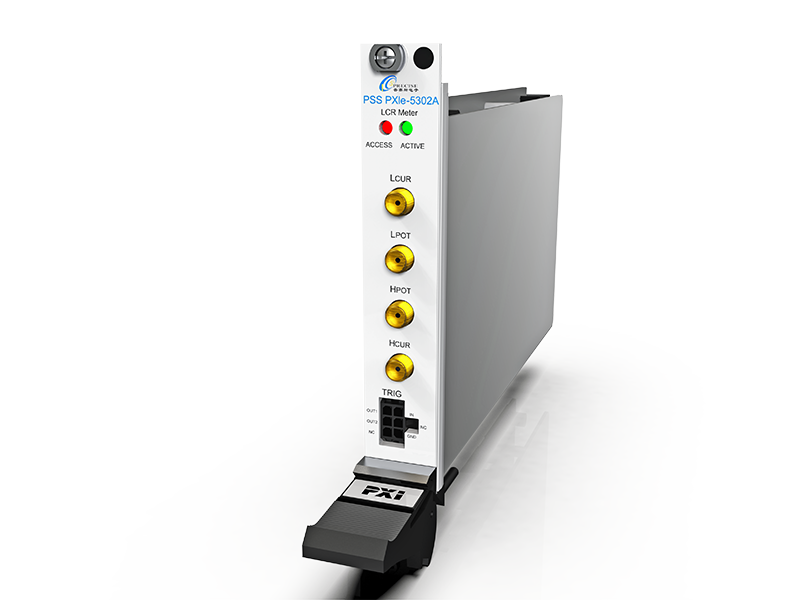

PSS PXIe-5302A

PSS PXIe-5302A is a high-performance LCR meter based on PXIe interface, mainly used for measuring the inductance (L), capacitance (C) and DC resistance (R) of passive, optoelectronic, semiconductor and other devices or materials. This product supports the standard SCPI instruction set and standard PXIe chassis, which can be quickly integrated into the PXIe test system to improve system test efficiency.

Test frequency 10KHz~2MHz, bias voltage ±40V, AC output 0.2Vrms~2Vrms

Matrix Switch

Matrix Switch

View Details

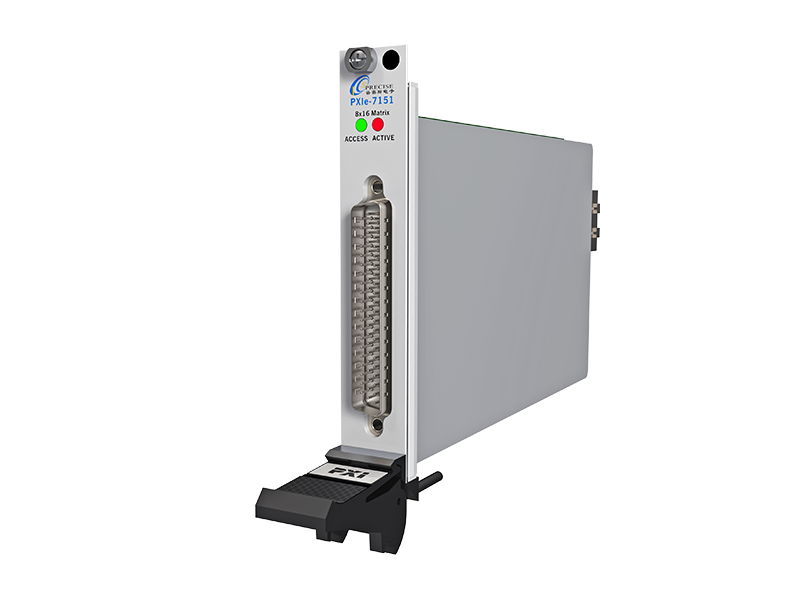

PXIe-7151

PXIe-7151 matrix switch has 128-node matrix. The software can be configured as 1 8x16 matrix or 2 8x8 matrices. Low contact impedance and high insulation impedance are applicable for high-precision test scenarios. It integrates the self-test module to quickly locate abnormal switches, and effectively improve test efficiency with test instruments. PXIe-7151 matrix switch complies with PXI-5 PXI Express Hardware Specifications and PXI-6 PXI Express Software Specifications, and is compatible with PXIe chassis produced by mainstream suppliers at home and abroad, meetING the needs of enterprise R&D, testing and production.

128 nodes, supporting one 8x16 or two 8x8 matrices

< 1234 > proceed page
