Optical Module Reliability

Optical Module Reliability
图片名称

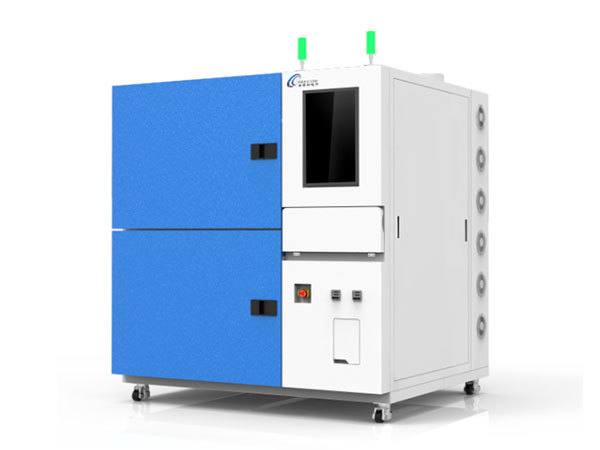

Drawer-Type Module Burn-in System

Drawer-Type Module Burn-in System

View Details

PSS MBS11921

The PSS Optical Module Burn-in System (PSS MBS11921) is designed for burn-in screening and reliability analysis of optical modules. Adopting a drawer-type structure solution, the system provides a 3~4V constant voltage output and high-temperature burn-in conditions. It performs real-time monitoring and testing on the operating current, voltage and ambient temperature of modules, and conducts automatic failure judgment. It stores the monitoring data in real time, enabling traceability of failed modules after burn-in. It records module voltage, temperature, bias current, transmit power and receive power via DDM.

Provide 3~4V power supply, with a maximum current of 10A per single module. It supports independent temperature control, with a temperature range of 60~85℃. It can support simultaneous burn-in of 144 optical modules

Integrated Optical Module Burn-in System

Integrated Optical Module Burn-in System

View Details

PSS MBS32016

PSS optical module integrated burn-in system (PSS MBS12016/22016/32016) is used for burn-in screening and reliability analysis of optical modules. The system provides 3~4V constant voltage and high temperature burn-in conditions up to 120℃, while performing real-time monitoring and testing of the module's operating current, voltage, and working environment temperature, and automatically performs failure judgment. It stores monitoring data in real time, supports tracing of burn-in failure modules, and records module voltage, temperature, bias current, transmitting power, and receiving power via DDM.

Provide 3~4V constant voltage and up to 120℃ high temperature burn-in conditions, supporting single burn-in of up to 2016 modules/COB (XFP, SFP+, QSFP+, QSFP-DD, OSFP, CFP packaging)
